The H Residence Sky Bridge

Client sector: Residential & mixed-use  |  Location: UAE  |  Asset: Architectural steel sky bridge

The H Residence is a low-rise, mixed-use landmark in the United Arab Emirates, pairing 37 residential apartments with a curated ground-floor retail and dining promenade. Its defining architectural gesture is a 30-metre sky bridge that links the development’s two wings at roof level and carries a rooftop infinity pool, giving residents an uninterrupted run across the skyline. ESG delivered the full detailed structural design of that bridge.

Project Overview

The sky bridge crosses roughly 30 metres of clear distance between the two wings with no intermediate support. The superstructure is a steel truss carrying a reinforced concrete deck slab. Beyond ordinary pedestrian and amenity loading, the structure had to support the sustained weight and dynamic water load of an infinity pool, together with its finishes and services, all while meeting the deflection and vibration limits that keep a long, slender span feeling solid underfoot.

Scope of Work

• Detailed design of the steel-truss superstructure across the 30-metre span.
• Design of the reinforced concrete deck slab and the pool support structure.
• Design of all steel/steel and steel/concrete connections.
• Three-dimensional structural analysis and member sizing of the complete bridge.
• Deflection and vibration serviceability checks for occupant comfort and pool water-tightness.

Structural Approach

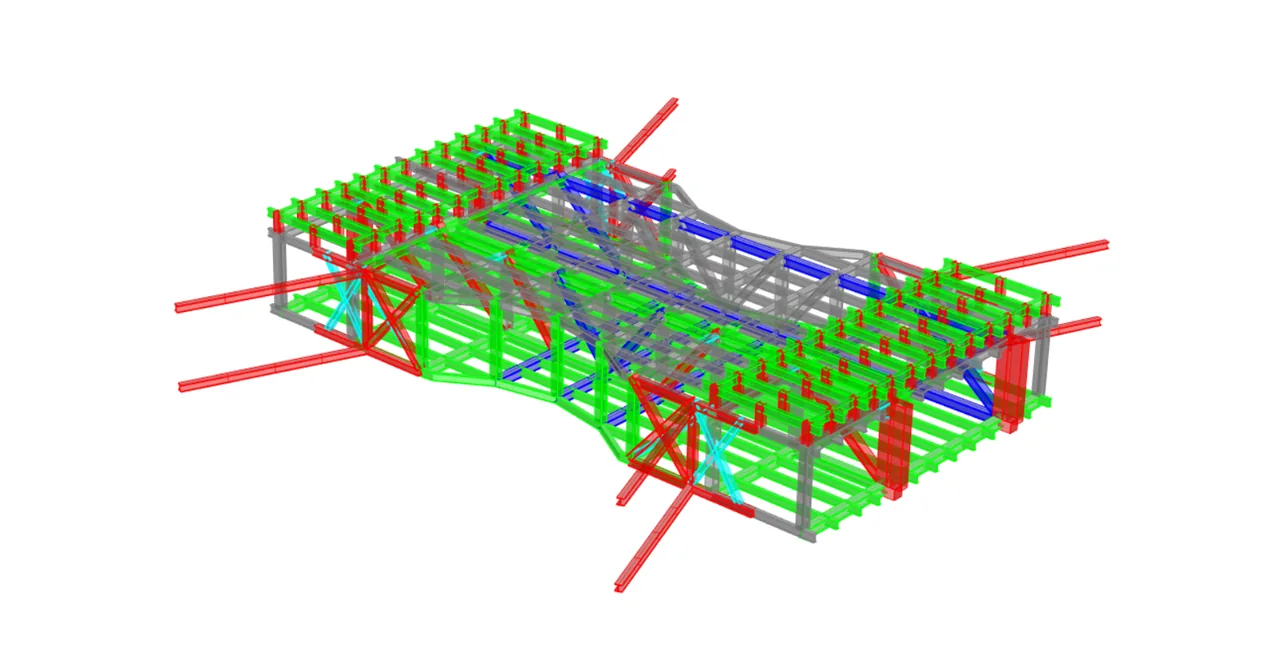

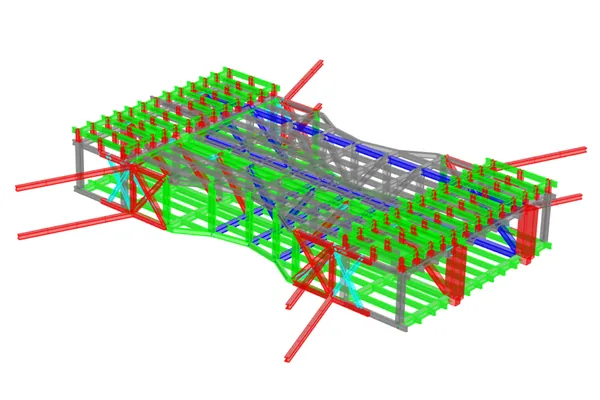

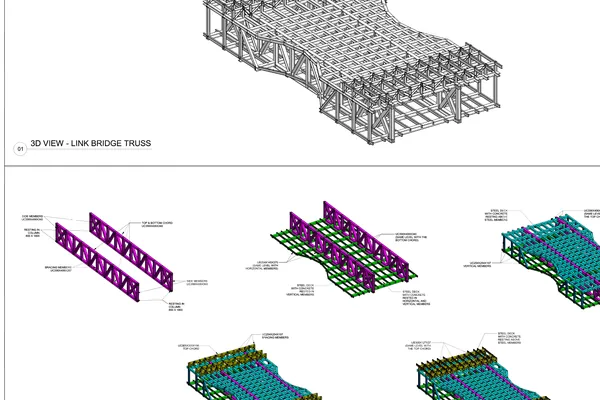

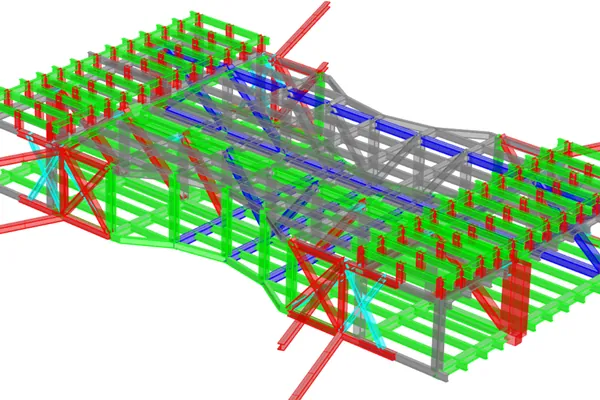

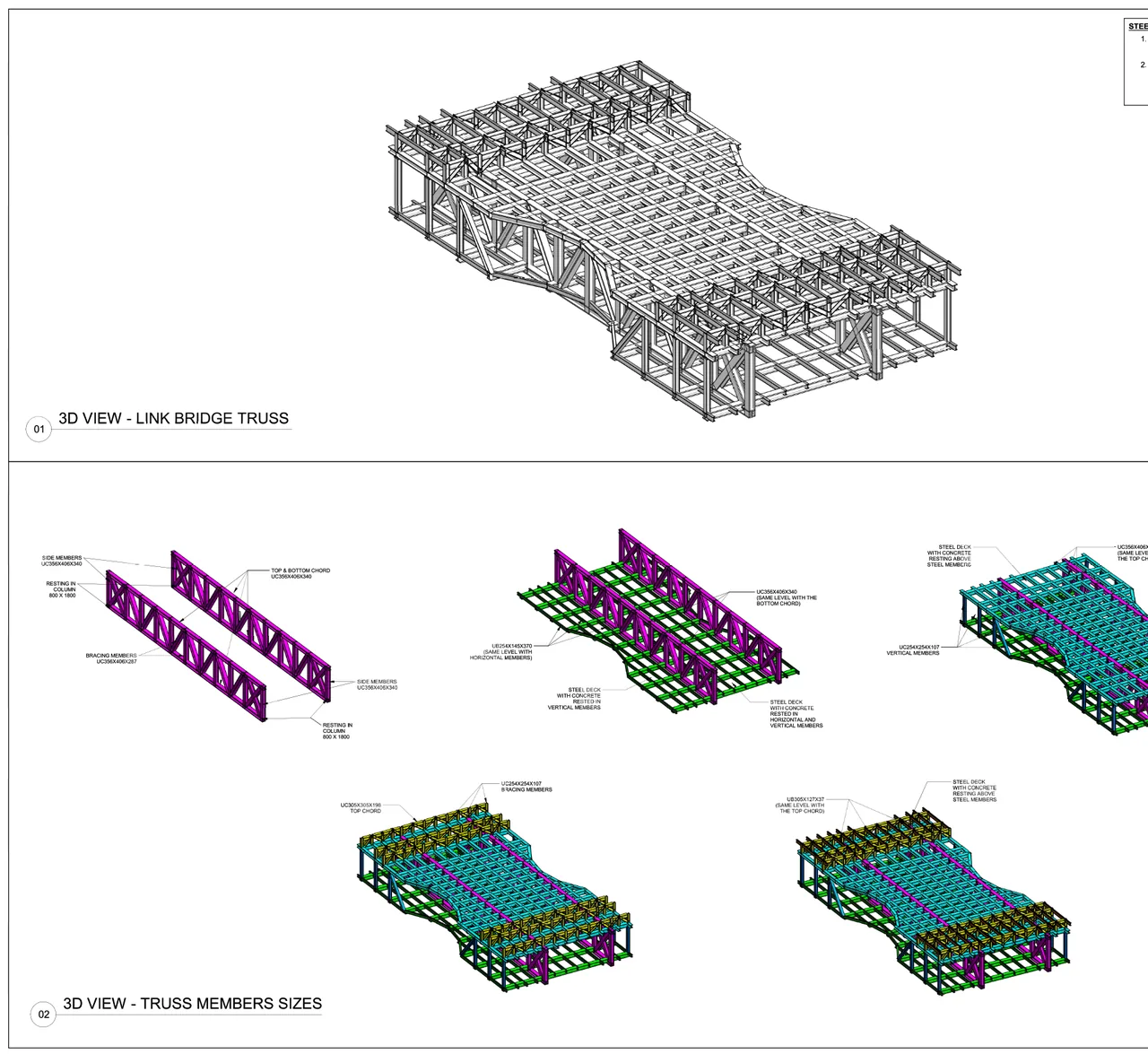

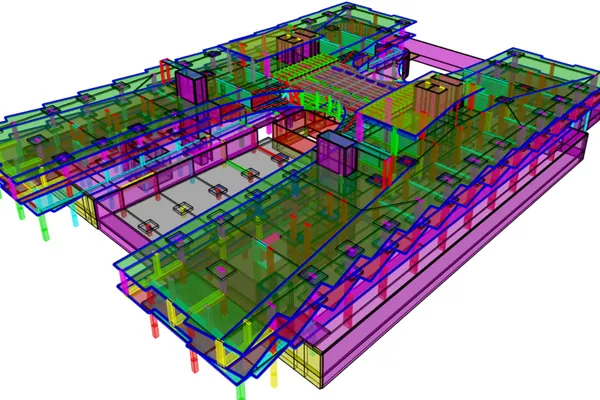

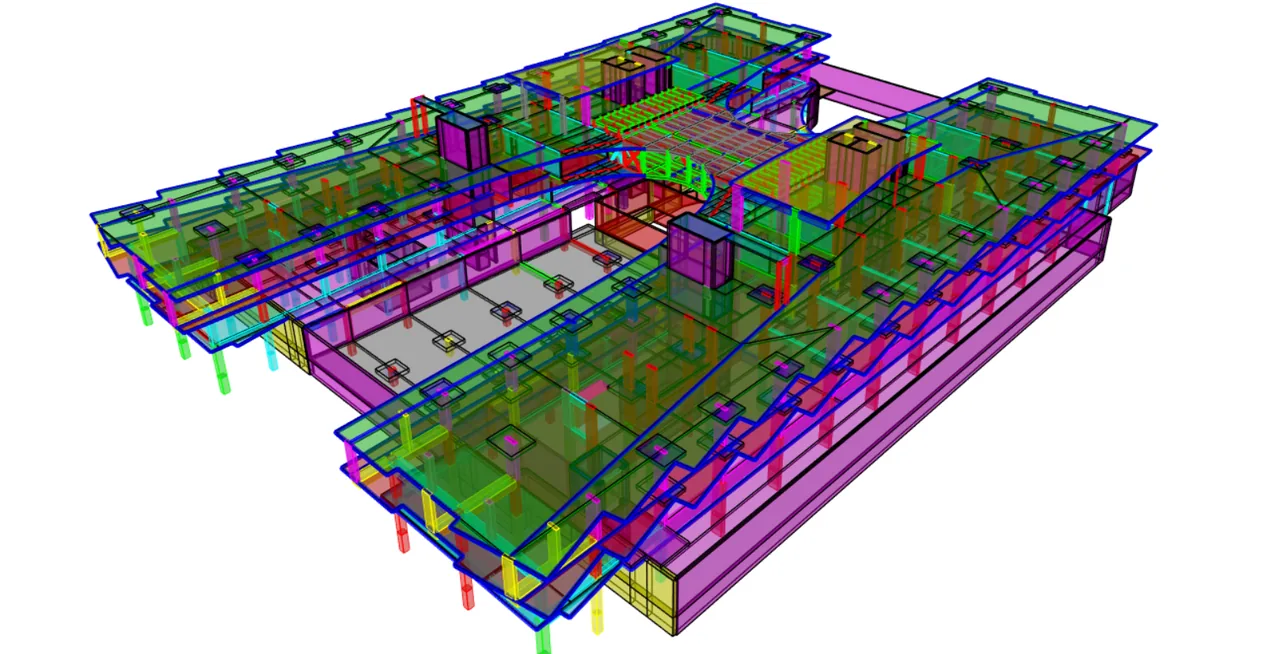

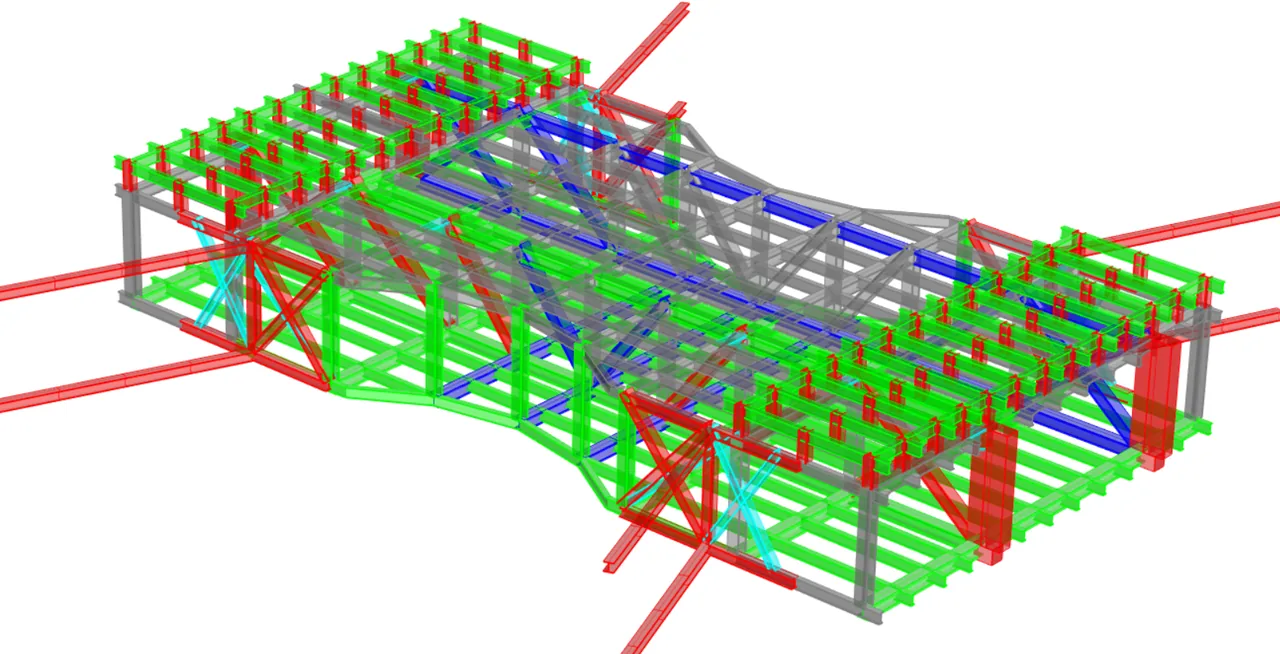

A steel truss was the natural answer to a column-free 30-metre span carrying heavy, off-centre loads. ESG modelled the complete bridge in three dimensions, sizing the chords, diagonals and bracing for strength and, just as importantly, for stiffness. The diagonal members were coordinated with the architecture so that they read as a deliberate feature inside the bridge rather than hidden structure. Connections were detailed for clean fabrication and straightforward erection between the two completed wings.

Durability and Standards

The design follows recognised international structural codes. Steel detailing and protection were specified for a long service life in the regional climate, and the concrete deck and pool slab were detailed for water-tightness and durability. The result is a structure engineered to carry an exposed, water-laden rooftop amenity for the long term.

Project Outcomes

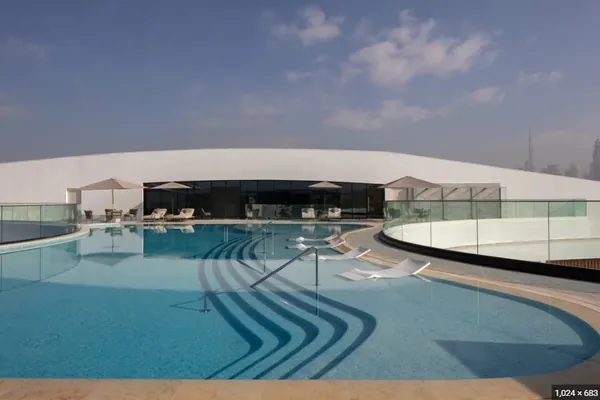

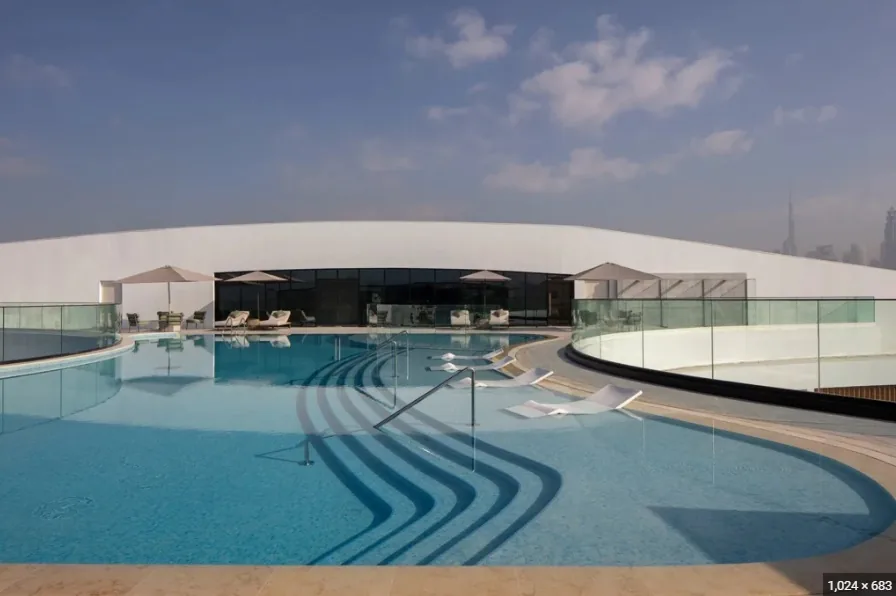

The completed sky bridge turns a bold architectural idea into a buildable, code-compliant structure. Residents move between the two wings beneath an expressed steel frame and step out onto a rooftop infinity pool with open skyline views. The project shows ESG’s strength in the complex, one-off structural problems that define signature developments.
