How Long Will the Repair Last? Predicting the Remaining Service Life of Concrete Buildings After Repair and Strengthening

Introduction: Why “Repaired” Is Not the Same as “Good for Another 30 Years”

When spalled concrete is patched, cracks are injected, and a fresh coating is rolled on, a building can look as good as new. But a repaired-and-functional structure is not the same thing as a structure with a verified remaining design life. The first is a visual and operational state; the second is an engineering judgement, backed by measured data and a defensible prediction model, about how many more years the structure can safely perform its intended function.

That distinction carries real financial, safety, and liability weight. For an owner, the difference between “good for 10 more years” and “good for 30 more years” reshapes the economics of a repair-versus-replace decision, the depreciation schedule, and the insurance position. For the engineer of record, signing off on a repair without a service-life basis transfers significant professional liability. And for occupants, an over-optimistic estimate that ignores ongoing corrosion can mean the deterioration clock was merely hidden, not stopped.

In the UAE and wider GCC this matters more than in temperate regions. High airborne and groundwater chlorides, sulfate-bearing soils and groundwater (sabkha), sustained high temperatures, and large humidity and thermal cycles drive corrosion and concrete degradation faster than the climates most international codes were originally calibrated against. A repair that would comfortably deliver decades of extra life in northern Europe may deliver far less on a Gulf coastline if the underlying drivers are not addressed.

This article explains how engineers move from “we fixed it” to “here is the estimated remaining service life, with stated assumptions and uncertainty.” It is educational and vendor-neutral: where a technique is associated with proprietary systems, we describe the underlying method, not any product.

Condition Assessment Before Estimation: You Cannot Predict What You Have Not Measured

Service-life prediction is only as good as the diagnostic data behind it. Before any model is run, a structured condition assessment characterises the current state of the concrete and reinforcement. The frameworks in ACI 364 (evaluation before rehabilitation) and ACI 562 (assessment, repair, and rehabilitation of existing concrete buildings) describe this investigation-led approach. The key tests, and what each contributes to a service-life model:

• Carbonation depth testing: typically a phenolphthalein indicator sprayed on a freshly broken or cored surface; the colourless (carbonated) zone is measured. This locates the carbonation front relative to the reinforcement and provides the carbonation rate used to estimate the time to depassivation in carbonation-driven corrosion.
• Chloride profiling: chloride content is measured at several depths (acid-soluble, expressed as % by mass of cement or of concrete). The resulting profile is the primary input for fitting a chloride diffusion model: it yields an apparent surface chloride concentration and an apparent diffusion coefficient, and shows whether chloride at the bar already exceeds the corrosion threshold.
• Half-cell potential mapping: a reference electrode surveys the probability of active corrosion across a member (interpreted per the guidance behind ASTM C876). It does not measure rate, but it maps where corrosion is likely versus passive, which is essential for deciding where repair is needed and for validating the model’s initiation assumptions.
• Cover meter (covermeter) surveys: electromagnetic measurement of concrete cover depth and bar location. Because cover is the diffusion path length, even small variations strongly affect initiation time; a cover distribution (not a single value) is what should feed the model.
• Core sampling: extracted cores allow compressive strength testing, petrographic examination (to detect alkali-silica reaction, sulfate attack, microcracking, and air-void/paste condition), and laboratory measurement of transport properties.
• Concrete strength and quality evaluation: in-situ and core strengths, plus resistivity or other transport indicators, characterise the concrete’s resistance to further ingress and its structural adequacy.

Together these establish three things the model needs: how far deterioration has already progressed, how fast the driving mechanism is moving, and how much sound material and capacity remain.

Common Deterioration Mechanisms, and Why the Gulf Accelerates Them

Most service-life loss in reinforced concrete comes from reinforcement corrosion; the rest from concrete-matrix attack. The dominant mechanisms in this region are:

• Chloride-induced corrosion: the single biggest durability issue on GCC coasts. Chlorides from seawater, salt spray, and saline groundwater penetrate the cover and, once they exceed a threshold at the steel (commonly taken around 0.4% chloride by mass of cement, though this is environment- and code-dependent and should be verified against the standard in use), break down the passive film and initiate pitting corrosion. High temperatures accelerate chloride diffusion; cyclic wetting and drying near the splash zone concentrates chlorides faster than pure diffusion predicts.
• Carbonation-induced corrosion: atmospheric CO₂ reacts with the alkaline pore solution, lowering pH and depassivating the steel once the carbonation front reaches it. Generally slower than chloride attack in dense Gulf concrete, but significant in older, more permeable, or inadequately covered structures, and in sheltered interior or car-park environments.
• Sulfate attack: sulfates in sabkha soils and groundwater react with hydration products, causing expansion, softening, and cracking that further open the concrete to chlorides. The Gulf’s sulfate-rich ground makes this a foundation- and substructure-level concern.
• Alkali-silica reaction (ASR): reactive silica in some aggregates reacts with pore-solution alkalis to form an expansive gel, producing map cracking. Where regional aggregates are reactive and moisture is available, ASR can both damage concrete directly and accelerate ingress.
• Freeze-thaw: included for completeness, but generally not relevant in the low-lying coastal Gulf. It may warrant consideration only at higher-altitude or desert locations with sub-zero nights; for most UAE building stock it can reasonably be screened out.

A crucial point for prediction: these mechanisms interact. Sulfate or ASR cracking shortens the chloride initiation period, and corrosion cracking accelerates everything. The model must reflect the governing mechanism actually present, not a textbook default.

Repair and Strengthening Methods and Their Service-Life Impact

Each technique addresses a different part of the deterioration process, and so extends life in a different way and to a different degree. The figures below are typical ranges from literature and practice, not guarantees; actual outcomes depend on workmanship, exposure, and whether the root cause was addressed. The EN 1504 series organises these interventions around defined “principles” (protection against ingress, moisture control, concrete restoration, preserving/restoring passivity, increasing resistivity, cathodic control, structural strengthening); the descriptions below map to those principles generically.

• Patch repair (concrete restoration). Removing chloride-contaminated or carbonated concrete and replacing it with repair mortar. Effective only if enough contaminated material is removed; otherwise the well-known incipient-anode (“ring” or “halo”) effect can drive new corrosion at the patch perimeter. Typical added life where the cause is properly addressed: roughly 5–15 years; less if contamination is left in place.
• Corrosion inhibitors (surface-applied or admixed). Chemicals intended to slow corrosion at the steel. Useful as a supplementary measure; field efficacy and penetration in heavily chloride-laden concrete are debated. Treat as a modest extension (often 5–15 years), highly variable, flag for verification against current performance data.
• Cathodic protection (CP): impressed-current (ICCP) or sacrificial/galvanic. Arrests corrosion electrochemically by controlling the steel’s potential (designed per EN ISO 12696). Where chloride is widespread and removal is impractical, CP is often the most durable option: design lives of 25 years or more are common, but it requires permanent anode/power systems and ongoing monitoring.
• Realkalisation. An electrochemical (or diffusion-based) treatment that restores alkalinity to carbonated concrete, re-establishing passivity. Best for carbonation-driven cases; a one-time treatment adding on the order of 10–20 years, with re-carbonation possible over time.
• Electrochemical chloride extraction (ECE / “desalination”). A temporary applied current that draws chloride out of the cover. Can reduce chloride below threshold, but rarely removes all of it and re-contamination can occur in marine exposure; treat extension as ~10–15+ years and site-specific.
• FRP strengthening (fibre-reinforced polymer). Bonded or near-surface-mounted composites that restore or increase structural capacity (design per ACI 440). It addresses capacity, not corrosion. Corrosion beneath the wrap can progress hidden from view. Durable for decades when detailed and protected correctly (UV, fire, anchorage), but must be paired with corrosion control.
• Section enlargement / concrete jacketing. Adds reinforced concrete to increase capacity and provide new, high-quality cover. Can deliver 30+ years when bonded and detailed well; adds dead load and dimensions.
• Protective coatings and membranes (surface protection). Barrier/pore-blocking systems and crack-bridging membranes that limit ingress of chlorides, CO₂, and water. Typically extend life by 10–25 years but require periodic reapplication; they slow ingress rather than reverse existing contamination.

The strategic rule: techniques that stop or reverse the corrosion driver (CP, realkalisation, ECE, effective coatings, full contaminated-concrete removal) reset the service-life clock; those that only restore appearance or capacity (cosmetic patching, FRP alone) do not. Durable outcomes usually combine capacity restoration with corrosion control.

Service-Life Prediction Models: From Carbonation Fronts to Probabilities

Two broad modelling philosophies exist, and modern practice increasingly blends them.

Deterministic models use single “best-estimate” values for each parameter and compute one service-life number. They are transparent and quick but hide the considerable scatter in real inputs (cover, diffusion coefficient, threshold).

Probabilistic models treat the key inputs as statistical distributions and compute the probability that a defined limit state (e.g., depassivation or cracking) is exceeded at a given time. This is the approach formalised in the fib Model Code for Service Life Design (fib Bulletin 34) and ISO 16204 (service-life design of concrete structures), which frame durability as a reliability problem with target reliability indices, directly analogous to structural limit-state design.

The conceptual backbone of corrosion service life is Tuutti’s two-phase model: total life = an initiation period (time for chlorides or the carbonation front to reach the steel and depassivate it) plus a propagation period (time from depassivation to an unacceptable level of corrosion damage, e.g., cracking or spalling). Repair interventions act on one or both phases: extending initiation (barriers, ECE, lower-permeability cover) or suppressing propagation (CP, inhibitors).

For chloride ingress, the workhorse is a solution of Fick’s second law of diffusion:

C(x, t) = C_s · [ 1 − erf( x / (2 · √(D · t)) ) ]

where C(x,t) is chloride concentration at depth x and time t, C_s is the (apparent) surface chloride concentration, D is the (apparent) chloride diffusion coefficient, and erf is the error function. The chloride profile from site testing is used to back-calculate C_s and D; the model then predicts when chloride at the cover depth reaches the critical threshold. (More refined models make D time-dependent and account for convection in the wetting/drying zone, worth verifying which form your standard or software adopts.)

The key insight for post-repair prediction: a successful repair resets or shifts the model parameters. A barrier coating lowers the effective C_s and slows D; full removal of contaminated concrete reduces the chloride already at the steel and effectively restarts initiation; CP changes the propagation phase so corrosion no longer accumulates; realkalisation restores the pH assumption underlying passivity. The remaining-life calculation is then re-run from the as-repaired condition, not the original construction.

A Worked Conceptual Example (Illustrative and Hypothetical)

The following is a deliberately simplified, hypothetical illustration to show the logic, not a design calculation. Real projects require site-specific data and a qualified engineer.

Consider a 1990s reinforced-concrete coastal building in the Gulf, assessed today at roughly 30 years of age. Suppose the condition assessment finds:

• Mean cover 40 mm, but with wide scatter (measured range ~20–55 mm).
• Chloride profiling fits an apparent surface concentration C_s ≈ 0.55% by mass of cement and an apparent diffusion coefficient D ≈ 3 × 10⁻¹² m²/s.
• Assumed critical chloride threshold C_crit ≈ 0.4% by mass of cement (assumption: must be justified per the governing standard).
• Half-cell mapping shows active corrosion concentrated at low-cover zones; carbonation depth is shallow (chloride, not carbonation, governs).

Running the Fick’s-law relationship with these values shows chloride at the mean 40 mm cover near or just reaching the threshold, consistent with the observed onset of corrosion, while at low-cover (20–25 mm) zones the threshold was reached years earlier, explaining the localised spalling. This scatter is exactly why a single deterministic number misleads and a probabilistic or zoned approach is preferable.

Now apply a combined repair strategy: localised concrete removal and patch repair at active zones, a galvanic/sacrificial CP system across the chloride-laden splash zone, plus a barrier coating over sound areas.

• The barrier coating roughly halves the effective ongoing chloride loading on sound concrete, lengthening the initiation phase for currently-passive steel.
• The CP system suppresses the propagation phase in the worst zones, so corrosion no longer accumulates while the system operates and is maintained.
• Patch repair removes the existing contaminated material locally, resetting those areas.

A defensible output is then expressed as a range with conditions, for example: “an estimated additional 20–30 years of service life, conditional on the cathodic-protection system being maintained and monitored, the coating being reapplied at roughly 10–15 year intervals, and confirmatory re-inspection at 5-year intervals.” Remove the CP maintenance, and the credible range might collapse to 10–15 years. The number is inseparable from the assumptions and the maintenance regime, and should always be stated as a range with its governing conditions.

Limitations, Uncertainty, and the Role of Monitoring

Service-life predictions are ranges, not guarantees, for sound technical reasons:

• Input scatter. Cover, diffusion coefficient, surface chloride, and threshold all vary across a structure; small changes in cover or D produce large changes in predicted life.
• Model simplification. Fick’s-law and two-phase models idealise complex, coupled physics. Convection, temperature dependence, cracking, and interacting mechanisms are only partially captured.
• Workmanship. Realised durability depends heavily on surface preparation, removal extent, curing, and detailing, none of which a model “sees.”
• Future exposure and use. Climate, microclimate, loading, and maintenance funding can all change.

The professional response is not to abandon prediction but to bound it and verify it over time. Good practice includes ongoing visual inspection, periodic re-testing (repeat chloride profiles, half-cell surveys, CP performance checks), and increasingly embedded sensors (corrosion-rate probes, reference electrodes, and moisture/temperature sensors installed in the structure) that turn a one-off prediction into a monitored, updateable estimate. Each reassessment re-calibrates the model against reality, narrowing the range and catching surprises early, an observational, update-as-you-go philosophy consistent with the reliability framework of fib Bulletin 34 and ISO 16204.

Conclusion and Practical Recommendations for Owners

For owners and facility managers commissioning repair works, a few neutral, actionable principles follow:

1. Commission a proper condition assessment first. Insist on the diagnostic basis (carbonation, chloride profiling, half-cell mapping, cover survey, cores) before committing to a scope. Repair without diagnosis is guesswork.
2. Ask for the remaining-service-life estimate as a range, with assumptions and conditions. A credible deliverable says “X to Y years, provided A, B, and C are maintained,” not a single guaranteed number.
3. Address the cause, not just the symptom. Cosmetic patching over active chloride contamination buys appearance, not life. In aggressive Gulf exposure, expect corrosion-control measures (removal, CP, barriers), not just structural fixes.
4. Budget for the whole life, including maintenance. Many high-value extensions (CP, coatings) are conditional on monitoring and reapplication: factor those recurring costs into the repair-versus-replace decision.
5. Build in monitoring and reassessment. Treat the estimate as a living figure to be re-verified, ideally with embedded sensors and scheduled re-inspection.
6. Keep documentation. Retain assessment data, model assumptions, and repair records, the basis for future reassessment and for managing liability.

Disclaimer

The figures, ranges, and example in this article are general and illustrative only. Remaining-service-life estimates are inherently project-specific and depend on site-specific assessment data, exposure conditions, materials, and workmanship. Any actual estimate must be produced by a qualified structural/durability engineer for the specific structure, using current editions of the relevant standards.

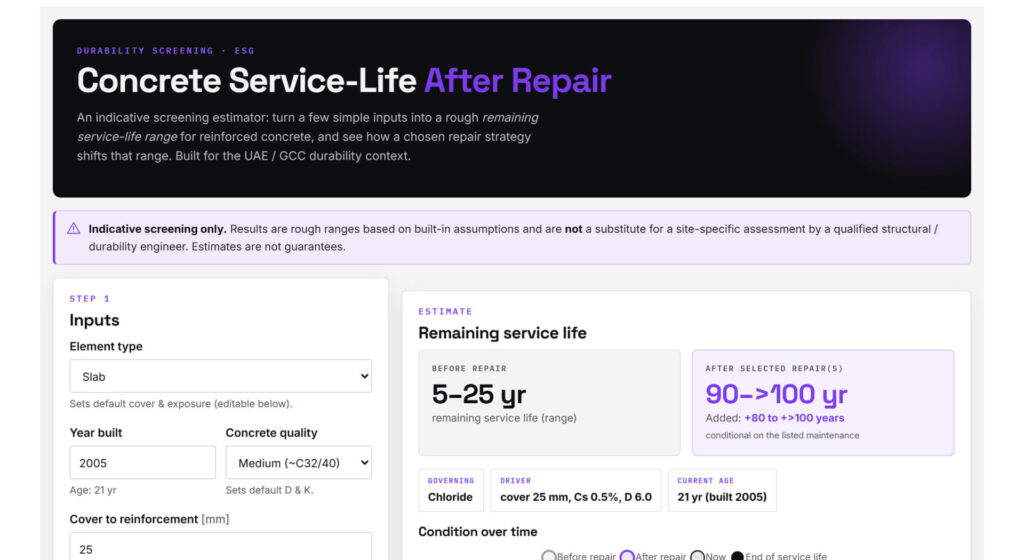

Want a number for your structure? Start with the free Concrete Service-Life estimator, then book a structural assessment for a site-specific study.
